Simple Differentiation:

$y = a x^{n} \Rightarrow \frac{d y}{d x} = a n x^{n - 1}$

Further Reading and Questions:

IGCSE Questions
(Care of www.mathsgenie.co.uk)

Level 2 Further Maths Questions [inc MS]
(Care of corbettmaths.com)

IGCSE Past Paper Questions
(Care of reviserightnow.com)

... search for more ...
(Care of duckduckgo.com)

The Gradient Function
(or graphing the derivative)

Gradient function refers to the derivative of a function, represented as $d y / d x$ , which indicates the rate of change of the function with respect to $x$ at any point along the curve. Understanding how to sketch and interpret these functions is essential for solving problems related to motion, optimization, and curve analysis.

Gradient Function $d y / d x$
(Care of www.examsolutions.net)

Sketching Gradient Functions
(Care of www.mathsgenie.co.uk)

(Care of )

Understanding Sketching Derivatives - What is Sketching Derivatives?

Sketching derivatives involves creating a graph that represents the behaviour of a function's derivative. This helps in understanding how the original function behaves, including its increasing and decreasing intervals, as well as its local maxima and minima.

Key Steps in Sketching Derivatives:

Find the First Derivative:: Calculate the derivative of the function. This will help identify critical points where the function changes from increasing to decreasing or vice versa.
Determine Critical Points:: Set the first derivative equal to zero to find critical points. These points indicate where the slope of the function is zero.
Analyze Intervals:: Use a number line to test intervals around the critical points. Determine where the first derivative is positive (function is increasing) and where it is negative (function is decreasing).
Find Local Extrema:: Identify local maxima and minima based on the sign changes of the first derivative.
Second Derivative Test:: Calculate the second derivative to find points of inflection and determine concavity. This helps in sketching the curvature of the graph.

Example of Sketching a Derivative:

For a function $f (x) = \frac{x^{3}}{3} + x - \frac{2}{3}$ :

Step	Calculation/Result
First Derivative	$f^{'} (x) = - x^{2} + 1$
Critical Points	$f^{'} (x) = 0$ gives $x = ±1$
Increasing Intervals	(−∞,−1) and (1,∞)
Decreasing Intervals	(−1,1)
Second Derivative	$f^{''} (x) = - 2 x$
Points of Inflection	x=0

Conclusion:

By following these steps, you can effectively sketch the derivative of a function, gaining insights into its behaviour and characteristics. This process is essential for understanding calculus concepts and solving related problems.

Differentiation from First principles

$f^{'} = \underset{h \to 0}{Lim} (\frac{f (x + h) - f (x)}{h})$

Basic Derivatives

Function $f (x)$	Derivative $f^{'} (x)$
$a$ $(a \in ℝ)$	$0$
$x^{n}$ $(n \in ℝ)$	$n x^{n - 1}$
$e^{x}$	$e^{x}$
$ln x$ $(x > 0)$	$\frac{1}{x}$

Function $f (x)$	Derivative $f^{'} (x)$
$sin x$	$cos x$
$cos x$	$- sin x$
$tan x$	${sec}^{2} x$
$cosec x$	$- cosec x cot x$
$sec x$	$sec x tan x$
$cot x$	$- {cosec}^{2} x$
${sin}^{-1} x$	$\frac{1}{\sqrt{1 - x^{2}}}$
${cos}^{-1} x$	$\frac{-1}{\sqrt{1 - x^{2}}}$
${tan}^{-1} x$	$\frac{1}{1 + x^{2}}$

Function $f (x)$	Derivative $f^{'} (x)$
$cosh x$	$sinh x$
$sinh x$	$cosh x$
$tanh x$	${sech}^{2} x$
$cosech x$	$- cosech x coth x$
$sech x$	$- sech x tanh x$
$coth x$	$- {cosech}^{2} x$
${cosh}^{-1} x$	$\frac{1}{\sqrt{x^{2} - 1}}$
${sinh}^{-1} x$	$\frac{1}{\sqrt{x^{2} + 1}}$
${tanh}^{-1} x$	$\frac{1}{1 - x^{2}}$

Rules of Differentiation

Constant factor

\frac{d (a y)}{d x} = a \frac{d y}{d x}

Term wise

\frac{d}{d x} (f + g) = \frac{d f}{d x} + \frac{d g}{d x}

The Reciprocal Derivative

\frac{d y}{d x} = {(\frac{d x}{d y})}^{-1}

Composite Functions
and the Chain rule

y = y (u)

\Rightarrow

\frac{d y}{d x} = \frac{d y}{d u} \frac{d u}{d x}

Factorised Expressions
and the Product rule

y = u v

\Rightarrow

\frac{d (u v)}{d x} = \frac{d u}{d x} v + u \frac{d v}{d x}

Algebraic Fractions
and the Quotient rule

y = \frac{u}{v}

\Rightarrow

f^{'} (\frac{u}{v}) = \frac{u^{'} v - u v^{'}}{v^{2}}

where $y$ , $u$ and $v$ are functions of $x$

Implicit Differentiation

Differentiation Proofs

Chain Rule

\frac{d y}{d x} = \frac{d y}{d u} \frac{d u}{d x}

Differentiation Chain Rule
(Care of www.physicsandmathstutor.com)

Differentiation Chain Rule
(Care of www.mathsgenie.co.uk)

Chain Rule
(Care of mmerevise.co.uk)

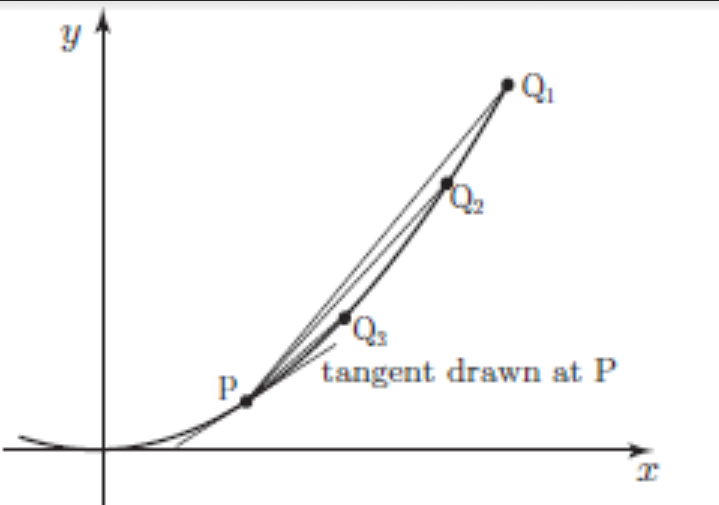

Differentiation from First Principles

Differentiation from First Principles

$f^{'} = \underset{h \to 0}{Lim} (\frac{f (x + h) - f (x)}{h})$

Example:

Differentiate $y = x^{2} - 5$ using first priniciples

f^{'} = \underset{h \to 0}{Lim} (\frac{f (x + h) - f (x)}{h})

f^{'} = \underset{h \to 0}{Lim} (\frac{{(x + h)}^{2} - 5 - (x^{2} - 5)}{h})

f^{'} = \underset{h \to 0}{Lim} (\frac{x^{2} + 2 h x + h^{2} - 5 - x^{2} + 5}{h})

f^{'} = \underset{h \to 0}{Lim} (\frac{2 h x + h^{2}}{h})

f^{'} = \underset{h \to 0}{Lim} (2 x + h)

f^{'} = 2 x

Questions:

Differentiation from First Priniciples
(Care of mmerevise.co.uk)

Past Paper Questions
(Care of naikermaths.com)

Differentiation from First Priniciples
(Care of www.mathsgenie.co.uk)

Analysing a Function with the Aid of Differentiation

Location:: $f (x) > 0$ where the function is above the $x$ -axis;; $f (x) < 0$ where the function is below the $x$ -axis;; $f (x) = 0$ gives the $x$ -intercept(s);; $f (0) = c$ gives the $y$ -intercept.
Increasing, Decreasing or Stationary:: $f^{'} (x) > 0$ where the function is increasing;; $f^{'} (x) < 0$ where the function is decreasing;; $f^{'} (x) = 0$ the locations of any stationary points.
Turning:: If $f^{"} (x) > 0$ then the function is convex;; If $f^{"} (x) < 0$ then the function is concave;; If $f^{"} (x) = 0$ then there is potentially a point of inflection (further testing required).
Stationary points:: If $f^{'} (x) = 0$ and $f^{"} (x) > 0$ then a local minimum point;; If $f^{'} (x) = 0$ and $f^{"} (x) < 0$ then a local maximum point;; If $f^{'} (x) = 0$ and $f^{"} (x) = 0$ then there is potentially a stationary point of inflection (further testing required).

Questions:

Increasing and Decreasing Functions Exam Questions
(Care of www.examsolutions.net)

Increasing/Decreasing Function Video:: Practice Questions [ MS ].
$d^{2} y / d x^{2}$ Video:: Practice Questions [ MS ].
Stationary Points Video:: Practice Questions [ MS ].
Application of Differentiation Video:: Practice Questions [ MS ].
Sketch curve knowing maxima/minima: Practice Questions [ MS ].
(Care of corbettmaths.com)

(Care of )
